LED Linear High Bay Light 2FT
Description

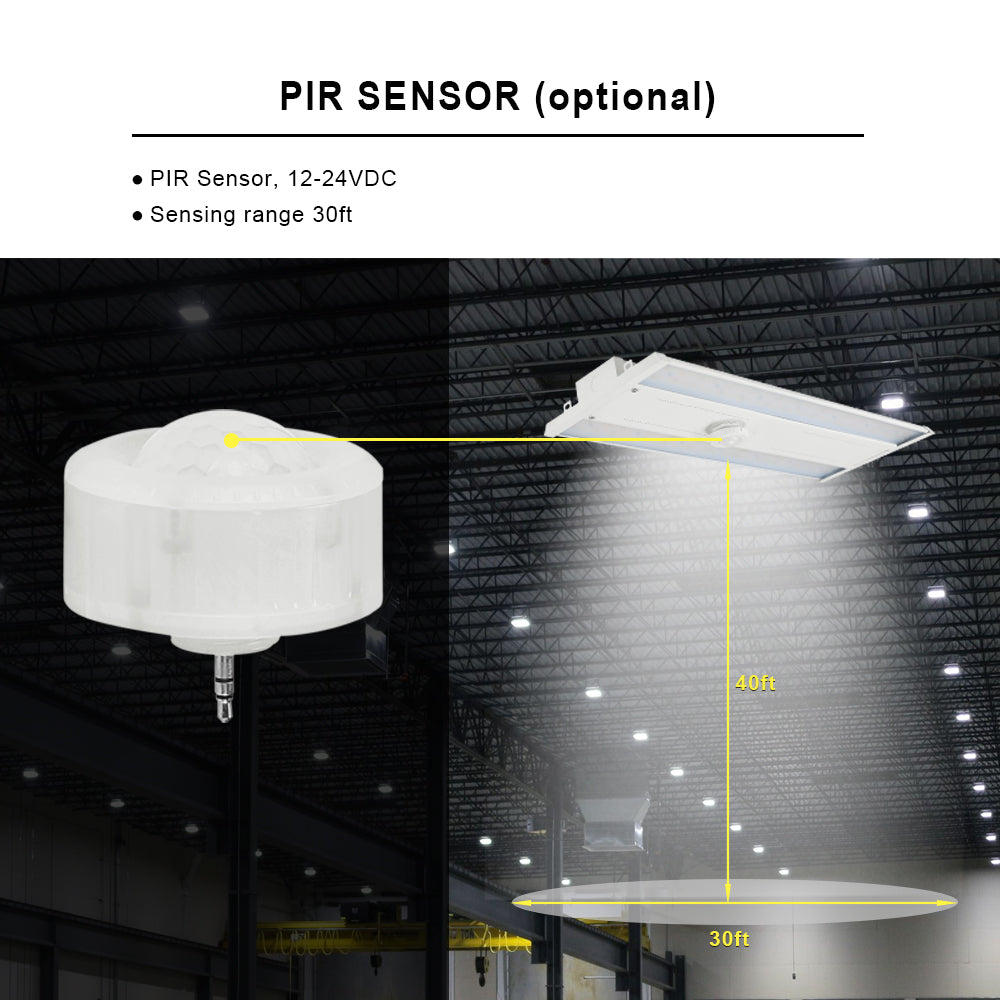

Illuminate your space with the Haloitte Lighting 2-foot LED linear high bay, designed for superior brightness and energy efficiency. This advanced fixture features a built-in port for easy motion sensor installation, allowing the sensor to be securely attached to the 3.5mm socket on the middle panel for automatic operation and convenience.
With an impressive efficacy of 150 lm/W, this LED high bay effectively replaces metal halide fixtures up to 800W, offering selectable wattage and lumen output levels of up to 31,000 lumens. You can customize your lighting by choosing between color temperatures of 4000K and 5000K to meet your specific needs. Constructed from durable steel and die-cast aluminum, it provides a lightweight yet robust design.
The fixture allows for flexible installation options, complete with a straight link chain and v-hooks for suspension mounting. For additional mounting solutions, explore our accessories for pendant mounting kits. Operating within a wide voltage range of 347-480V, this 225W LED linear high bay ensures compatibility with various electrical systems. It also includes 0-10V dimming capability and a sensor receptacle for enhanced control and energy savings. Ideal for warehouses, factories, gymnasiums, and other high-ceiling spaces, the Haloitte Lighting high bay delivers exceptional performance, durability, and efficiency.

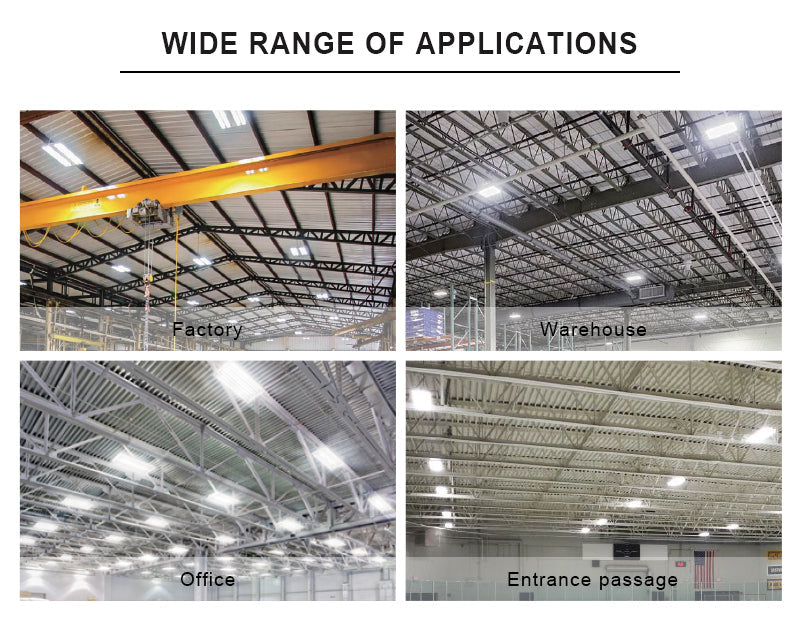

Applications
| Warehouses | Big Box Retailers | Distribution Centers |
| Convention Centers | Educational institutions | Residential buildings |
| Public transportation hubs | Supermarkets | Factories |
| Gyms and fitness centers | Manufacturing Plants |
Specifications
| Input Voltage | 347-480Vac | Dimmable | 0-10V |
| Max Lumens | 31000 | Efficacy | Up to 150 LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 113 F | IP Rating | IP20 |
| Power Factor | >0.9 | THD | <17% |
| Input Wattage | 225W/190W/145W/110W Selectable Wattage | ||
| Color Temperature | 5000K/4000K Selectable CCT | ||
| Certifications | UL, DLC | ||
| Sensor & Controls | with Sensor Base | ||
